BUMP TR148 + SWG PEDESTRIAN BARRIER WITH INTEGRATED SWING-GATE PASSAGE

BUMP TR148 separates pedestrian routes from vehicle areas; the pedestrian line can be completed with the SWG Swing Gate passage, which allows controlled passage of operators and closes by itself.

WHEN IT’S NEEDED

• Separate pedestrian routes from
  vehicle handling areas.
• Defined access points along the
  perimeters.
• Safe pedestrian corridors out of
  forklift paths.

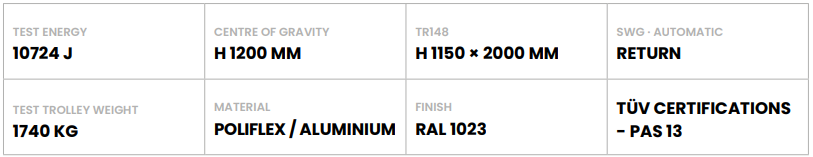

HOW IT’S MADE

• TR148 linear barrier H 1150 × 2000
  mm in Poliflex.
• SWG spring-loaded swing gate
  800–1000 mm, in aluminium.

• Automatic return of the swing
  gate after passage.

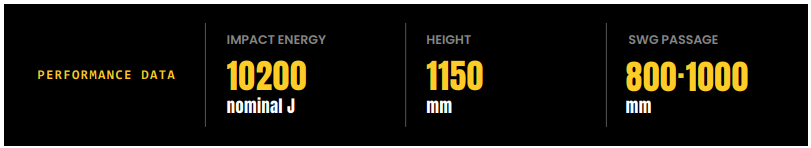

WHAT YOU GET

• High-energy linear protection
  (10200 J TÜV-certified).
• Passage with automatic reclosing, no manual action.

• Barrier continuity + defined
  access point.
